Calculate the 'desplim' compactness of an sf POLYGON object

desplim_compactness.Rd

Based on the approach described in Kaufmann et al. (2018), this function computes the compactness of an sf POLYGON object.

Usage

desplim_compactness(input, keep_metrics = FALSE)

Arguments

input

object of class sf of type POLYGON or MULTIPOLYGON.

keep_metrics

logical; should all the compactness metrics be kept? Default is FALSE.

Value

An sf object of type POLYGON matching input, with the compactness metric(s) added.

Details

Please see the dedicated vignette for information about the compactness metric. If input contains geometries of type MULTIPOLYGON, they are cast to POLYGON before computing.

Examples

# Create simple plygon
polygon_coords <- list(matrix(
 c(0, 0, 0, 1, 1, 3, -1, 2, -3, 1, -2, 0, 0, 0),
 ncol = 2,
 byrow = TRUE
))
simple_polygon <- sf::st_sfc(sf::st_polygon(polygon_coords), crs = 4326)
input_sf <- sf::st_sf(geometry = simple_polygon)
# Calculate compactness
compactness_result <- desplim_compactness(input_sf, keep_metrics = TRUE)

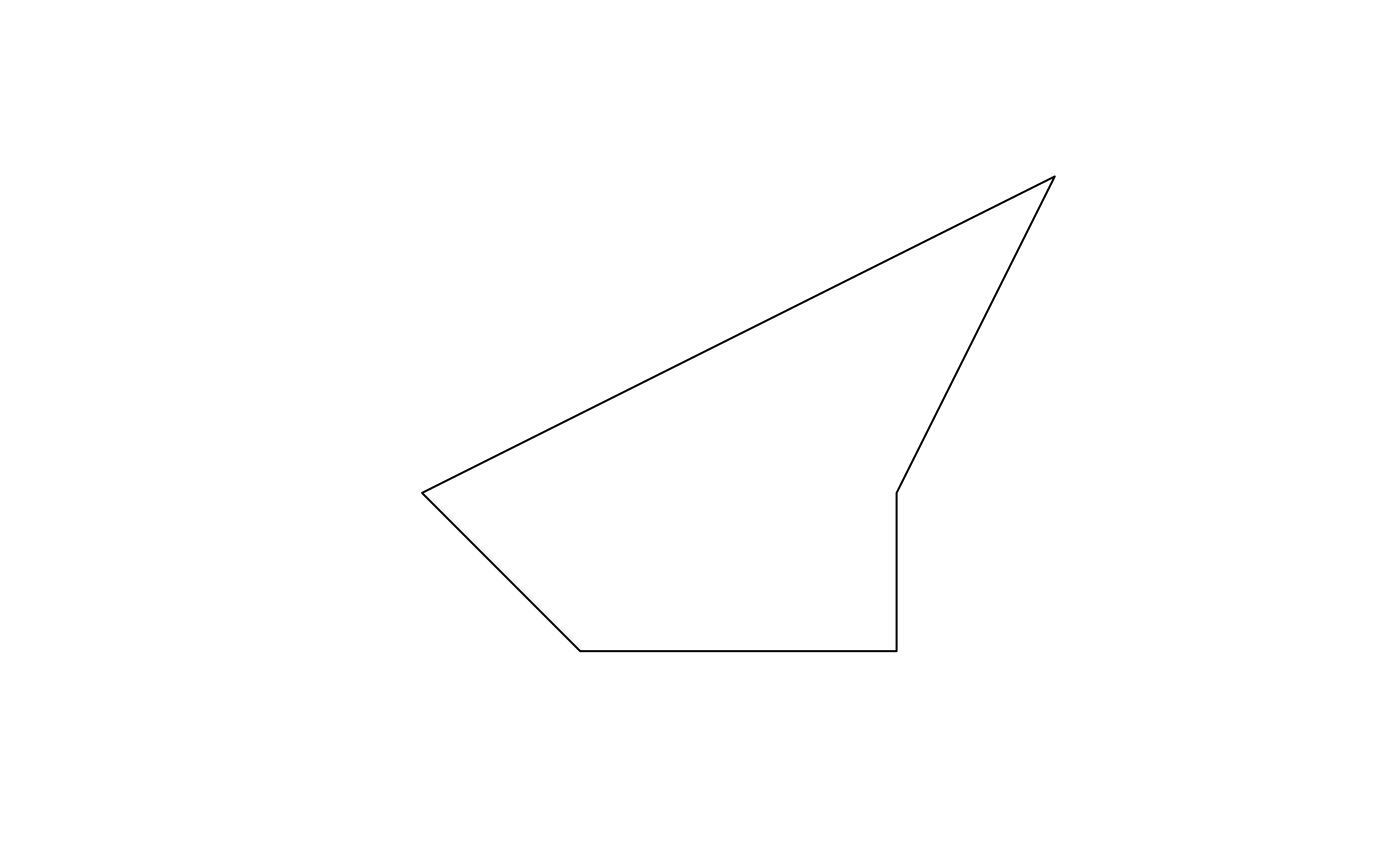

plot(input_sf)

print(sf::st_drop_geometry(compactness_result))
#>       boyce box_reock      hull   len_wid    polsby     reock  schwartz
#> 1 0.8264538 0.5499207 0.9165904 0.7503429 0.5586596 0.3524037 0.7474354
#>        skew     sym_x     sym_y compactness
#> 1 0.4282874 0.6491615 0.6362868   0.8179947
